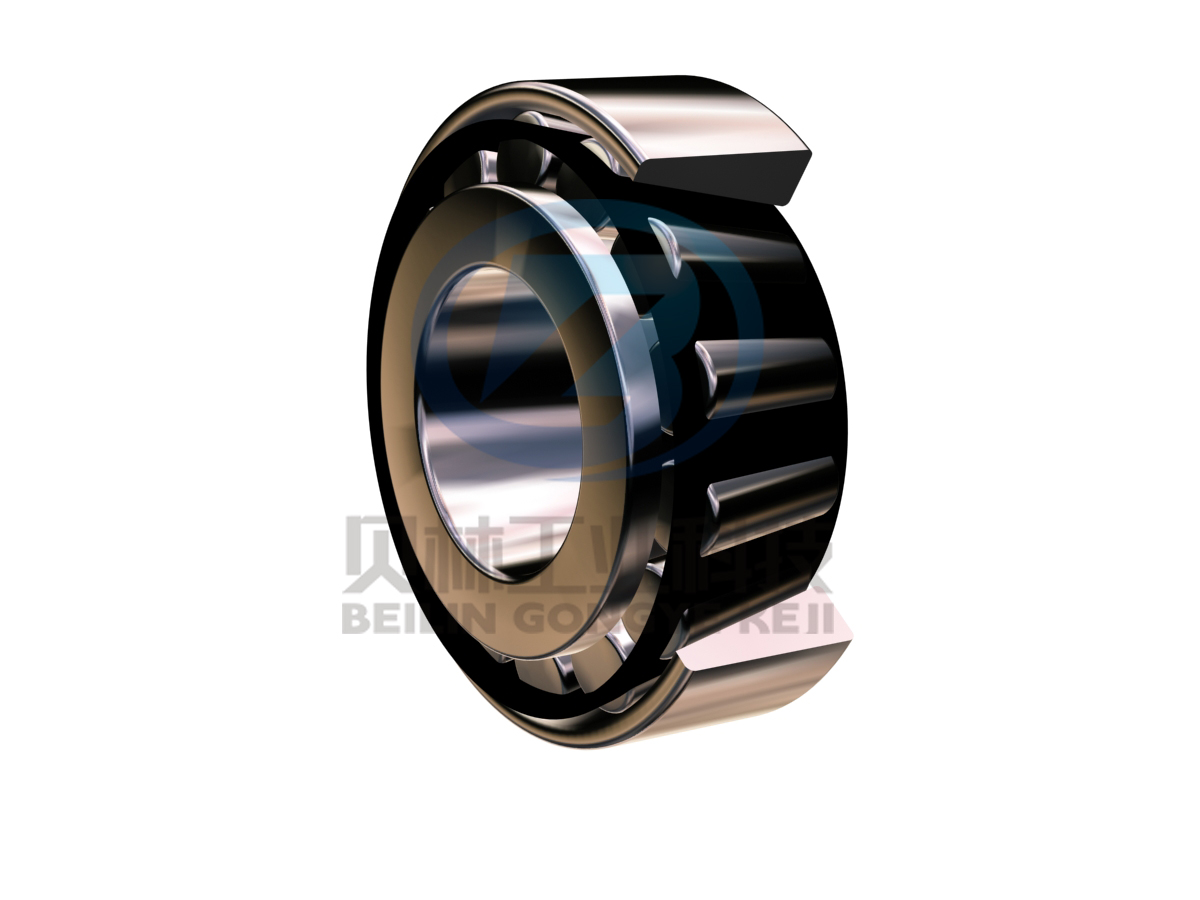

圓錐滾子軸承為分離型軸承、帶滾子和保持架的內圈構成內組件，能與外圈分開安裝。軸承內、外圈具有錐形滾道，滾道之間裝有錐形滾子。圓錐滾子軸承主要用于承受以徑向負荷為主的徑向、軸向聯合負荷。軸承的軸向承載能力由接觸角α即外圈滾道角度決定，α越大，軸向承載能力越大。
單列圓錐滾子軸承：此種軸承只能***軸或外殼的一個方向的軸向位移，承受一個方向的軸向載荷。當軸承承受徑向負荷時，將會產生一個軸向分力，所以常需要用另一個可承受反方向軸向力的軸承來加以平衡。
圓錐滾子軸承多采用鋼板沖壓保持架，但可根據用戶的需要及特大型軸承則采用滾子有支柱孔的支柱焊接結構的保持架。為了防止軸承在高速運轉時因離心力的作用在滾子與滾道間產生有害的滑移現象，軸承必須承受一定的***小徑向負荷，其值可向本司技術部門咨詢。

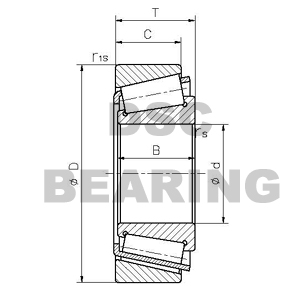

軸承型號 Designation | 外 形 尺 寸 Dimensions(mm) | 額定負荷 Basic Load ratings(KN) | 極限轉速 Limiting Speedr/min | 重量 Weight kg | |||||||||
New | Old | d | D | B | C | T | rsmin | r1smin | Cr | Cor | Grease | Oil | |
30232 | 7232E | 160 | 290 | 48 | 40 | 52 | 4 | 3 | 509.4 | 744.8 | 1100 | 1600 | 12.9 |
32232 | 7532E | 160 | 290 | 80 | 67 | 84 | 4 | 3 | 852.6 | 1446.1 | 1000 | 1400 | 21.1 |
32036 X | 2007136 | 180 | 280 | 60 | 52 | 64.5 | 3 | 2.5 | 580 | 505 | 1100 | 1600 | 13 |
30236 | 7236E | 180 | 320 | 52 | 43 | 57 | 5 | 4 | 680 | 520 | 1000 | 1500 | 17.8 |
32236 | 7536E | 180 | 320 | 86 | 71 | 91 | 5 | 4 | 998.1 | 1727.3 | 950 | 1400 | 29.8 |
32938 | 2007938 | 190 | 260 | 42 | 36 | 45.5 | 2.5 | 2 | 365 | 345 | 1100 | 1600 | 6.52 |
32038 X | 2007138 | 190 | 290 | 60 | 52 | 64.5 | 3 | 2.5 | 627 | 1140 | 1000 | 1500 | 14.1 |
30240 | 7240E | 200 | 360 | 58 | 48 | 64 | 5 | 4 | 865 | 665 | 900 | 1300 | 25.4 |
32240 | 7540E | 200 | 360 | 98 | 82 | 104 | 5 | 4 | 1390.4 | 2203.8 | 900 | 1300 | 43.2 |
32944 | 2007944 | 220 | 300 | 48 | 41 | 51.5 | 3 | 2.5 | 455 | 465 | 1000 | 1500 | 10.1 |
32044 X | 2007144 | 220 | 340 | 72 | 62 | 76.5 | 4 | 3 | 852 | 1577 | 900 | 1300 | 22.2 |
30244 | 7244E | 220 | 400 | 65 | 54 | 72 | 4 | 5 | 1080 | 835 | 850 | 1200 | 36.8 |
32244 | 7544E | 220 | 400 | 108 | 90 | 115 | 4 | 3 | 1530 | 2565 | 800 | 1100 | 48.1 |
32948 | 2007948 | 240 | 320 | 48 | 41 | 51.5 | 3 | 2.5 | 430 | 425 | 900 | 1300 | 10.8 |
32048 X | 2007148 | 240 | 360 | 72 | 62 | 76.5 | 4 | 3 | 850 | 815 | 850 | 1200 | 23.8 |
32248 | 7548E | 240 | 440 | 120 | 100 | 127 | 4 | 4 | 1843 | 3183 | 750 | 1000 | 81.3 |
32952 | 2007952 | 260 | 360 | 60 | 52 | 64.5 | 3 | 2.5 | 650 | 675 | 800 | 1100 | 19.2 |
32052 X | 2007152 | 260 | 400 | 82 | 71 | 87.7 | 5 | 4 | 1112 | 2090 | 800 | 1100 | 36.9 |
30352X2 | 7352 | 260 | 540 | 102 | 85 | 114 | 6 | 6 | 2014 | 2898 | 670 | 900 | 111 |
32956 | 2007956 | 280 | 380 | 60 | 52 | 64.5 | 3 | 2.5 | 640 | 675 | 650 | 800 | 21.3 |
32056 X | 2007156 | 280 | 420 | 82 | 71 | 87.7 | 5 | 4 | 1200 | 1130 | 750 | 1000 | 39.6 |
32960 | 2007960 | 300 | 420 | 72 | 60.5 | 76.5 | 4 | 3 | 998 | 2128 | 700 | 950 | 28.7 |
32060 X | 2007160 | 300 | 460 | 95 | 82 | 100.7 | 5 | 4 | 803 | 1722 | 560 | 700 | 55.9 |
30660 | 7860 | 300 | 440 | 70 | 55 | 73 | 4 | 3 | 959 | 2062 | 570 | 600 | 30.7 |
31160 X2 | 1007760 | 300 | 500 | 90 | 70 | 95 | 4 | 4 | 1225 | 2207 | 530 | 670 | 67.7 |
32964 | 2007964 | 320 | 440 | 72 | 62 | 76.5 | 4 | 3 | 607 | 1375 | 560 | 700 | 44.7 |
32064/YB2 | 2007164 | 320 | 480 | 95 | 82 | 100.7 | 5 | 4 | 1463 | 2945 | 530 | 670 | 59 |
32968/YB2 | 2007968 | 340 | 460 | 72 | 62 | 76.5 | 4 | 3 | 611 | 1428 | 530 | 670 | 34.3 |
32068 X2 | 7168 | 340 | 520 | 82 | 64 | 86 | 4 | 4 | 807 | 1540 | 500 | 630 | 57 |
32972/YB2 | 2007972 | 360 | 480 | 72 | 62 | 76.5 | 4 | 3 | 634 | 1526 | 500 | 630 | 35.9 |
31072 X2 | 7172 | 360 | 540 | 82 | 64 | 86 | 4 | 4 | 919 | 1848 | 480 | 600 | 60.5 |
31976 X2 | 1007976 | 380 | 520 | 65 | 46.5 | 66.5 | 3 | 3 | 529 | 1138 | 480 | 600 | 37.5 |
31176 X2 | 1007776 | 380 | 620 | 106 | 76 | 112 | 4 | 4 | 909 | 1708 | 400 | 500 | 114 |
31080 X2 | 7180 | 400 | 600 | 90 | 67 | 95 | 4 | 4 | 1040 | 2128 | 400 | 500 | 84 |
31984 X2 | 1007984 | 420 | 560 | 65 | 51 | 70 | 3 | 3 | 630 | 1383 | 400 | 500 | 42.4 |
31084 X2 | 7184 | 420 | 620 | 90 | 70 | 95 | 4 | 4 | 1132 | 2422 | 380 | 480 | 88 |
31184 X2 | 107784 | 420 | 700 | 122 | 92 | 130 | 6 | 6 | 1620 | 2800 | 310 | 420 | 183 |
31088 X2 | 7188 | 440 | 650 | 94 | 67 | 96.4 | 6 | 4 | 1193 | 2422 | 360 | 450 | 99 |
31992 X2 | 1007992 | 460 | 620 | 74 | 58 | 80 | 3 | 3 | 836 | 1834 | 380 | 480 | 59.8 |
31092 X2 | 7192 | 460 | 680 | 100 | 78 | 105 | 6 | 6 | 1680 | 3550 | 330 | 450 | 118 |
31996 X2 | 1007996 | 480 | 650 | 78 | 60 | 84.2 | 4 | 4 | 854 | 1918 | 340 | 430 | 71 |
310/500 X2 | 71/500 | 500 | 720 | 100 | 82 | 110 | 6 | 6 | 1459 | 3192 | 280 | 360 | 135 |
319/530 X2 | 10079/530 | 530 | 710 | 82 | 62 | 88 | 4 | 4 | 1001 | 2380 | 280 | 360 | 94.8 |
319/560 X2 | 10079/560 | 560 | 750 | 85 | 64 | 92.5 | 4 | 4 | 1001 | 2576 | 240 | 320 | 104 |
310/560 X2 | 71/560 | 560 | 820 | 115 | 84 | 121 | 6 | 6 | 1887 | 4046 | 220 | 300 | 191 |
310/600 X2 | 71/600 | 600 | 870 | 118 | 89 | 124 | 6 | 6 | 2020 | 4438 | 180 | 240 | 235 |
310/630 X2 | 71/630 | 630 | 920 | 128 | 94 | 135 | 7.5 | 7.5 | 2315 | 5222 | 170 | 220 | 278 |
319/710 X2 | 10079/710 | 710 | 950 | 106 | 80 | 114 | 6 | 6 | 1765 | 4494 | 150 | 190 | 210.24 |
319/800 X2 | 10078/800 | 800 | 1060 | 115 | 89 | 122 | 6 | 6 | 2132 | 5530 | 130 | 170 | 275 |
319/900 X2 | 10079/900 | 900 | 1180 | 122 | 87 | 124 | 6 | 6 | 2173 | 5782 | 95 | 130 | 330 |
320/900 X2 | 71/900 | 900 | 1280 | 170 | 135 | 190 | 7.5 | 7.5 | 5615 | 13913 | 95 | 130 | 703 |
319/950 X2 | 10079/950 | 950 | 1250 | 132 | 100 | 140 | 7.5 | 7.5 | 3930 | 10427 | 80 | 100 | 428 |
